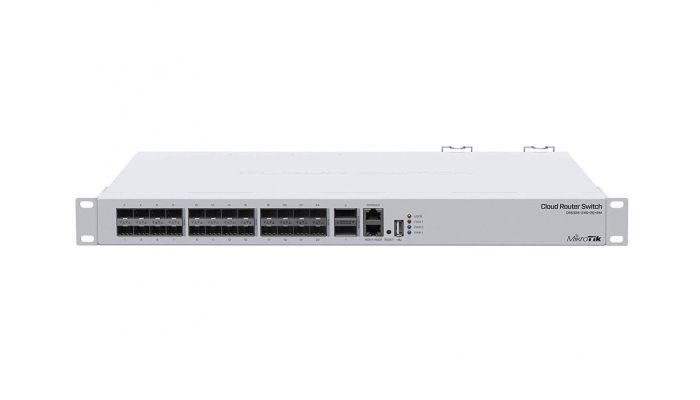

MikroTik Cloud Router Switch 326-24S+2Q+RM (2X 40Gb QSFP+ ports, 24x 10Gb SFP+ ports)
$775.00
Out of stock
SKU
CRS-326-24S+2Q+RM
The CRS326-24S+2Q+RM has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets. It has a standard USB port for configuration and dual power supply for redundancy.
1U rackmount case
Specifications
| Details | |
|---|---|
| Product code | CRS326-24S+2Q+RM |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 443 x 200 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS or SwitchOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 69 W |
| Max power consumption without attachments | 42 W |
| FAN count | 3 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 24 |
| Number of 40G QSFP+ ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
