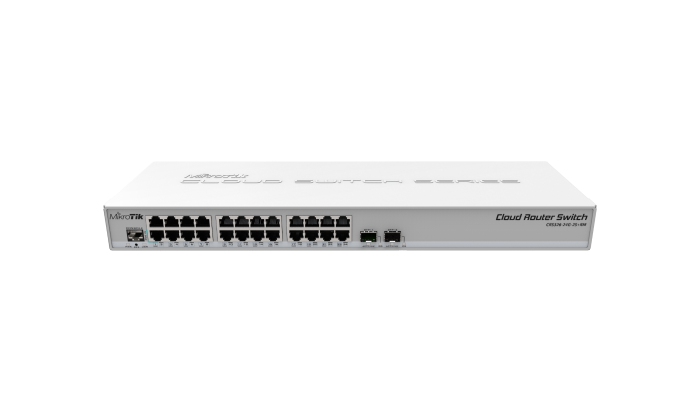

MikroTik Cloud Router Switch CRS 326-24G-2S+RM (24x 1Gb ports and 2x 10GB SFP+)

$295.00
Out of stock
SKU
CRS326-24G-2S+RM-1

SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!

It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

Specifications

Details
Product code CRS326-24G-2S+RM
Architecture ARM 32bit
CPU 98DX3236
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 443 x 144 x 44 mm
RouterOS license 5
Operating System RouterOS / SwitchOS
Size of RAM 512 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C



Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-30 V
Max power consumption 24 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V


Ethernet

Details
10/100/1000 Ethernet ports 24


Fiber

Details
SFP+ ports 2


Peripherals

Details
Serial console port RJ45


Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20
