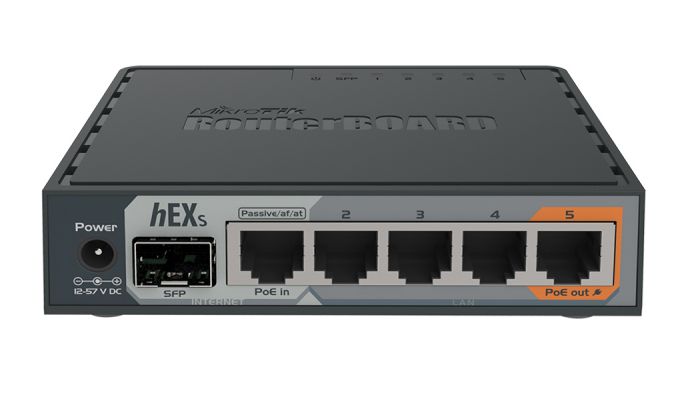

MikroTik hEX S (5x 1Gb Ethernet ports, 1x PoE out port, 1x SFP port)
$115.00
Out of stock
SKU
RB760iGS
The hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port. It has a dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Specifications
| Details | |
|---|---|
| Product code | RB760iGS |
| Architecture | MMIPS |
| CPU | MT7621A |
| CPU core count | 2 |
| CPU nominal frequency | 880 MHz |
| CPU Threads count | 4 |
| Dimensions | 113 x 89 x 28 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| PoE in | 802.3af/at |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 24 W |
| Max power consumption without attachments | 6 W |
| FAN count | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether5 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input < 30 V) | 500 mA |
| Max out per port output (input > 30 V) | 500 mA |
| Max total out (A) | 500 mA |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
