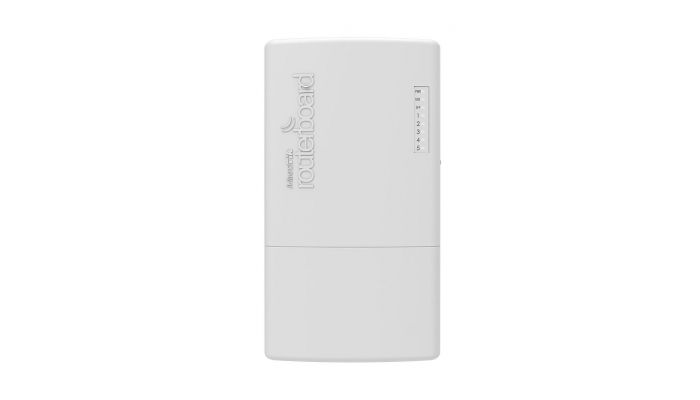

MikroTik PowerBox Pro (5x Gigabit LAN ( 5x 1Gb Ethernet ports, 4x PoE out ports, 1x SFP port)
$145.00
In stock
SKU
RB960PGS-PB
The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. The device is weatherproof.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.
The device has an SFP port for adding optical fiber connectivity.
Specifications
| Details | |
|---|---|
| Product code | RB960PGS-PB |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 125 x 52 x 225 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| PoE in | Passive PoE |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 54 W |
| Max power consumption without attachments | 6 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2-Ether5 |
| PoE out | 802.3af/at |
| Max out per port output (input < 30 V) | 1 A |
| Max out per port output (input > 30 V) | 450 mA |
| Max total out (A) | 2 A |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
